Product Features / PRODUCT
Plug and play, features auto-detecting, auto-configuration, and auto firmware upgrade, etc.
Integrated OAM remote configuration and maintenance function.
Support rich QinQ VLAN functions and IGMP Snooping multicast features.
Fully compatibility with OLT based on popular chipset.
Support 802.11n WiFi(2T2R) function.
Support NAT, Firewall function.
Support IPv4 and IPv6 dual stack.
The WAN port supports bridge, router and bridge/router mixed mode.
Product standard/ PRODUCT
EPON IEEE802.3ah
Technical Parameters / PRODUCT
Technical item | 1GE+1FE+WiFi |
Interface | 1 GPON/EPON interface, SC single-mode/single-fiber. |
GPON: uplink 1.25Gbps, downlink 2.5Gbps; EPON: symmetric 1.25Gbps. |
Wavelength | PON Tx1310nm,Rx 1490nm |

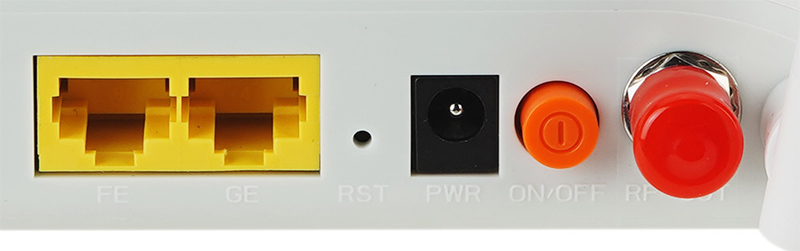

LAN interface | 1x 10/100/1000Mbps Auto-negotiation Ethernet interfaces. |
1x10/100Mbps Auto-negotiation Ethernet interfaces. |
RJ45 connector |
Wireless | Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R, 2 external antenna |
LED | 6, For Status of POWER,LOS,PON,LAN,WiFi. |
Operating condition | Temperature: -5℃~55℃ |
Humidity: 10%~90%(non-condensing) |
Storing | Temperature :-30℃~60℃ |
condition | Humidity :10%~90%(non-condensing) |
Power supply | DC 12V/1A |
Power consumption | ≤7W |
Dimension | 185mm×120mm×34mm(L×W×H) |
Net weight | 0.24Kg |
