Widely Used Ventilation Hvac Electric Damper

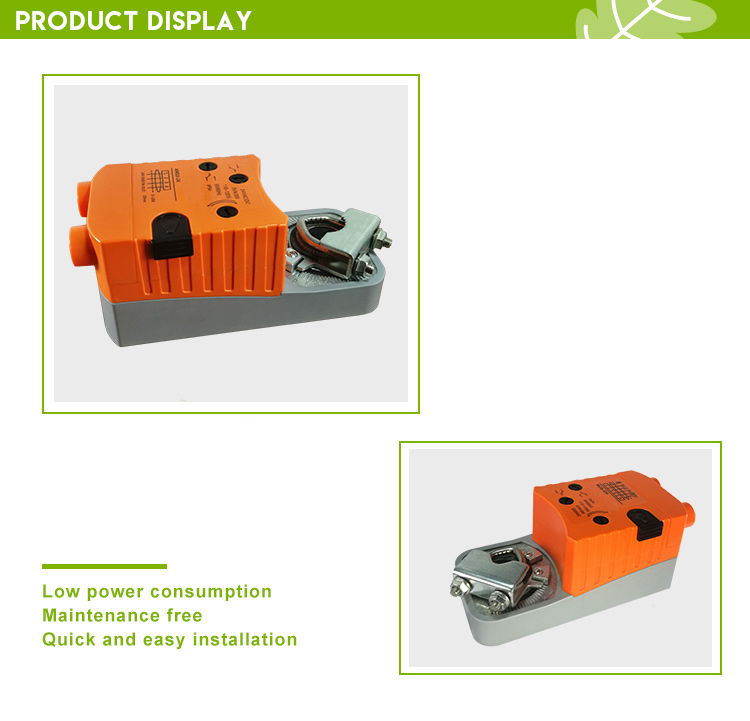

Product display
Specification
| Actuator |
| Actuator | AF/AM |
| Output torque | 5, 10, 15, 20,30 40N.m |
| Power supply | AC220V or AC/DC24V |
| Run time | About 120S |
| Operating power | 5VA |
| Output angle | 90°± 3° |
| ON/OFF control signal | 1 wire or 2 wire control |
| Control signal | 4(0)~20mA,or 0(2)~10V |
| Feedback signal | DC0 -10V |
| Installation position | Upright to horizontalNo upset |
| Protection class | IP54 |
| Ambient conditions | - 10°C. to. +55°C 0..90% RH |
| Weight | 1kg |
| Material | Flame-resistant Abs |

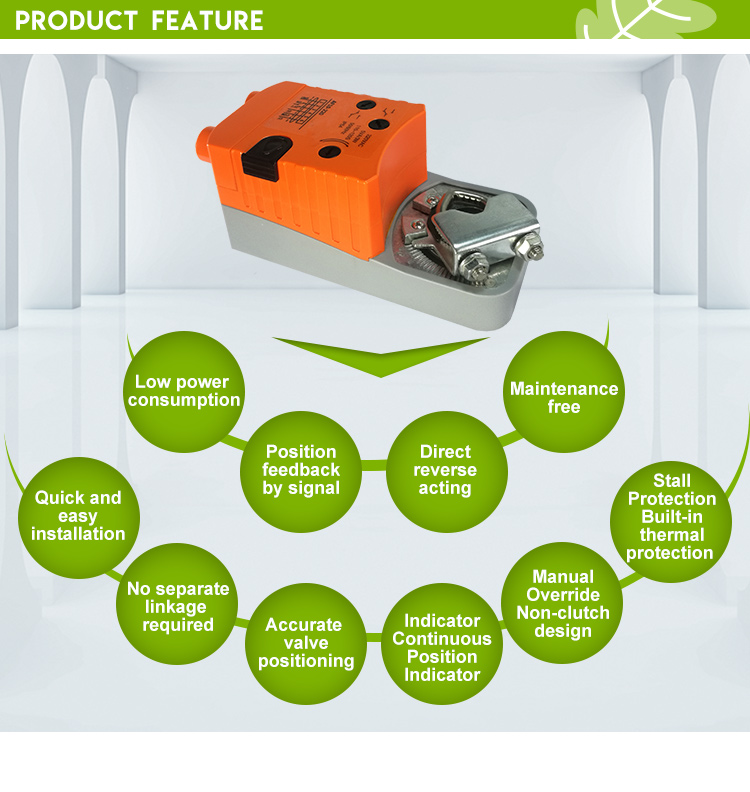

Product Feature
